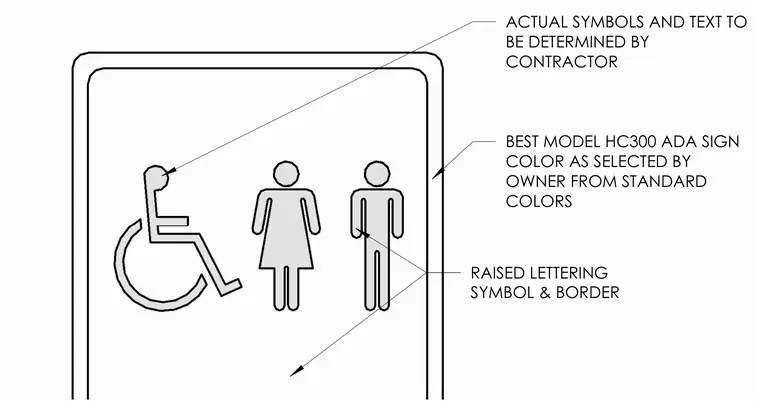

This drawing outlines the specifications for a Best Model HC300 Americans with Disabilities Act compliant sign. The assembly includes raised lettering, symbols, and a border. The exact color is selected by the owner from standard manufacturer options, and the actual symbols and text are determined by the contractor.
BEST MODEL HC300 ADA SIGN COLOR AS SELECTED BY OWNER FROM STANDARD COLORS RAISED LETTERING SYMBOL & BORDER ACTUAL SYMBOLS AND TEXT TO BE DETERMINED BY CONTRACTOR
