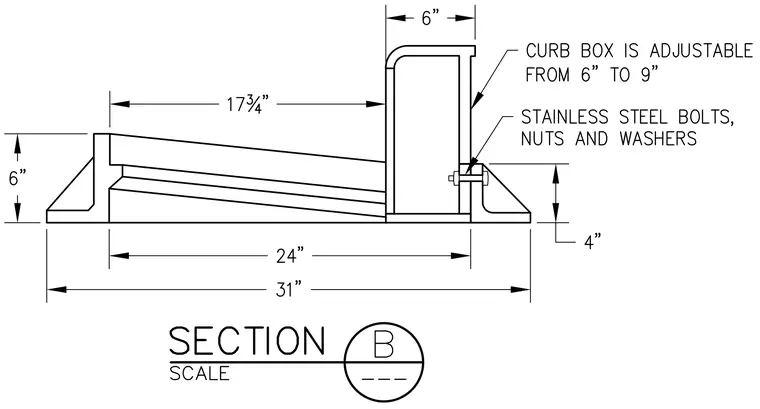

An adjustable curb box assembly features an overall length of thirty-one inches with an internal twenty-four inch span and a seventeen and three-quarter inch offset. The vertical curb box component is adjustable from six to nine inches in height and connects using stainless steel bolts, nuts, and washers. The base assembly has a six-inch height at the lower end and a four-inch fastener connection height with integral side gusset supports.
