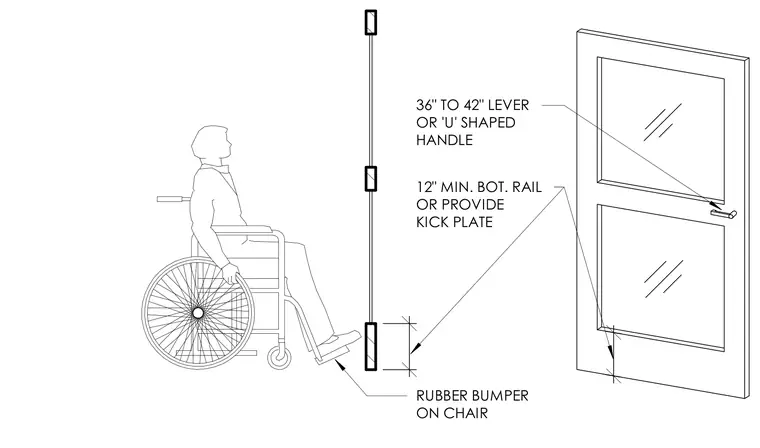

Doors feature a lever or U-shaped handle mounted thirty-six to forty-two inches above the floor. The bottom rail requires a minimum twelve-inch height or a kick plate to protect against wheelchair footrests and rubber bumpers on chairs.
36" TO 42" LEVER OR 'U' SHAPED HANDLE 12" MIN. BOT. RAIL OR PROVIDE KICK PLATE RUBBER BUMPER ON CHAIR 0 ( ■ )_
