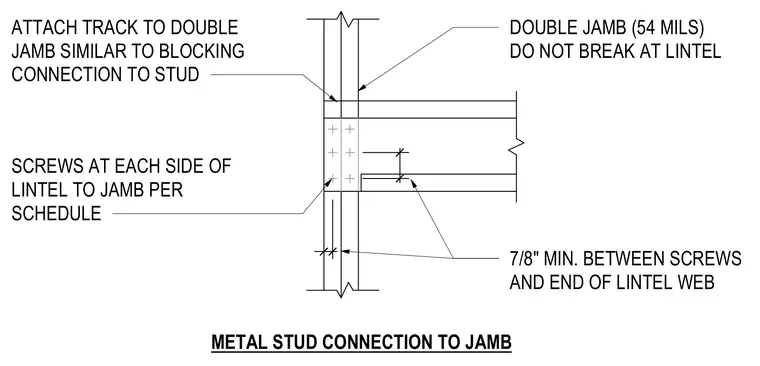

A cold-formed steel lintel connects to a double jamb framing member composed of fifty-four mil studs that continue unbroken past the opening. Screws are fastened to each side of the lintel to the jamb per the structural schedule, maintaining a seven-eighths-inch minimum edge distance between the screws and the end of the lintel web. The track is attached to the double jamb similarly to the blocking connection to the stud.
METAL STUD CONNECTION TO JAMB DOUBLE JAMB (54 MILS) DO NOT BREAK AT LINTEL ATTACH TRACK TO DOUBLE JAMB SIMILAR TO BLOCKING CONNECTION TO STUD SCREWS AT EACH SIDE OF LINTEL TO JAMB PER SCHEDULE 7/8" MIN. BETWEEN SCREWS AND END OF LINTEL WEB
