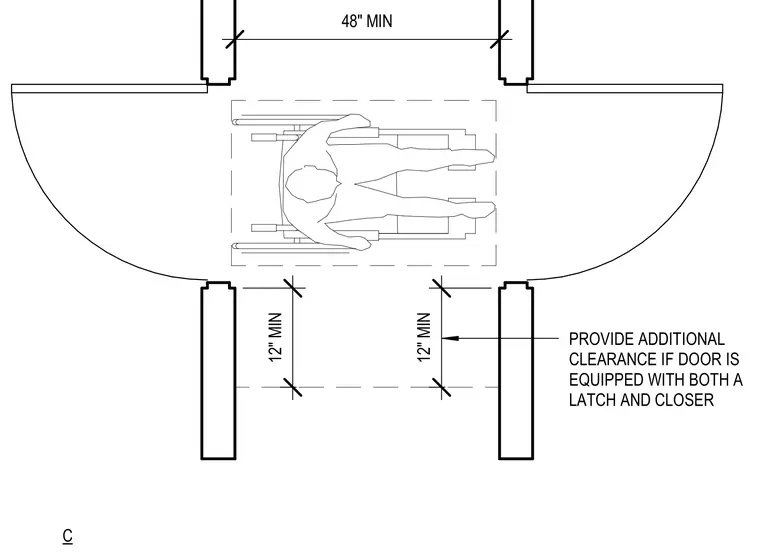

An accessible door maneuvering clearance layout requires a minimum forty-eight-inch clear opening width with twelve-inch minimum clearances on the latch side. Additional clearance must be provided if the door is equipped with both a latch and a closer.
C 48" MIN 12" MIN 12" MIN PROVIDE ADDITIONAL CLEARANCE IF DOOR IS EQUIPPED WITH BOTH A LATCH AND CLOSER
