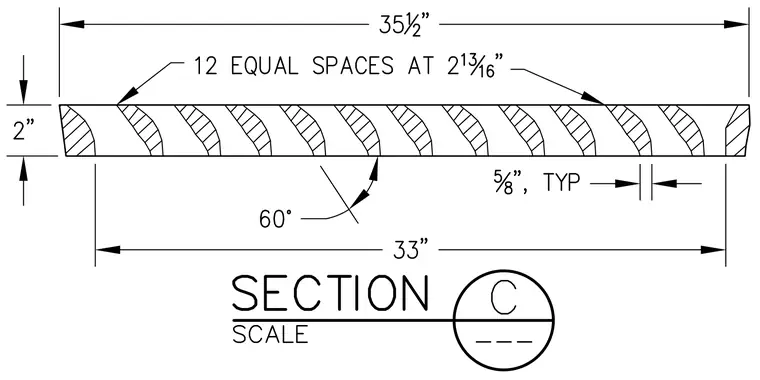

A metal plate measuring thirty-five and one-half inches long by two inches thick features twelve equal spaces at two and thirteen-sixteenths inches, spanning a thirty-three inch distance. The plate incorporates internal diagonal slots spaced at five-eighths inch typically, featuring sixty-degree angular cuts.
