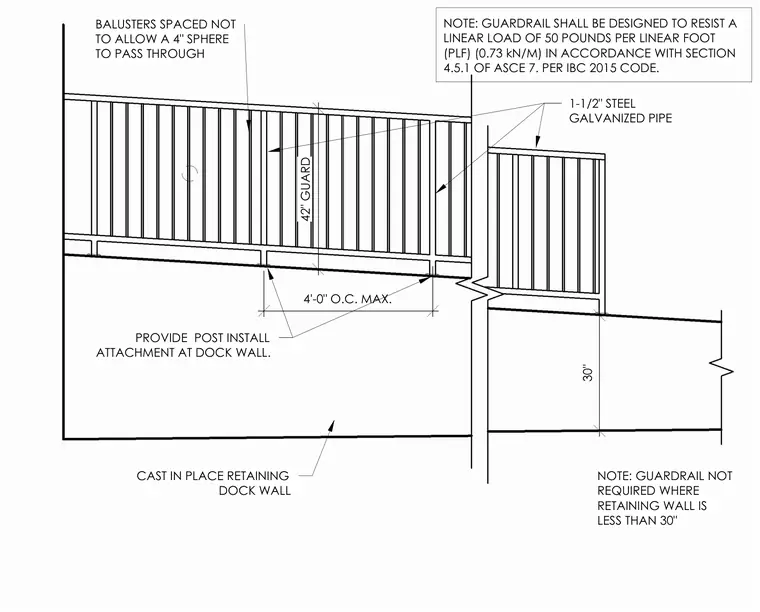

A forty-two inch guardrail constructed of one-and-a-half-inch steel galvanized pipe is anchored to a cast-in-place retaining dock wall. Posts are spaced at four feet on-center maximum with a post-installed attachment to the concrete wall. Balusters are spaced to restrict a four-inch sphere from passing through. The guardrail is designed to resist a linear load of fifty pounds per linear foot in accordance with ASCE 7 and IBC 2015 codes. Guardrail is omitted where the retaining wall height is less than thirty inches.
42" GUARD 30" 4'-0" O.C. MAX. BALUSTERS SPACED NOT TO ALLOW A 4" SPHERE TO PASS THROUGH 1-1/2" STEEL GALVANIZED PIPE NOTE: GUARDRAIL NOT REQUIRED WHERE RETAINING WALL IS LESS THAN 30" PROVIDE POST INSTALL ATTACHMENT AT DOCK WALL. NOTE: GUARDRAIL SHALL BE DESIGNED TO RESIST A LINEAR LOAD OF 50 POUNDS PER LINEAR FOOT (PLF) (0.73 kN/M) IN ACCORDANCE WITH SECTION 4.5.1 OF ASCE 7. PER IBC 2015 CODE. CAST IN PLACE RETAINING DOCK WALL
