Architectural · G-Y9P52

Top of Partition at Concrete Over Metal Deck

Materials

Concrete Steel Metal (misc.)Gypsum / Drywall

Elements

Partitions Roofs Ceilings Decks Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

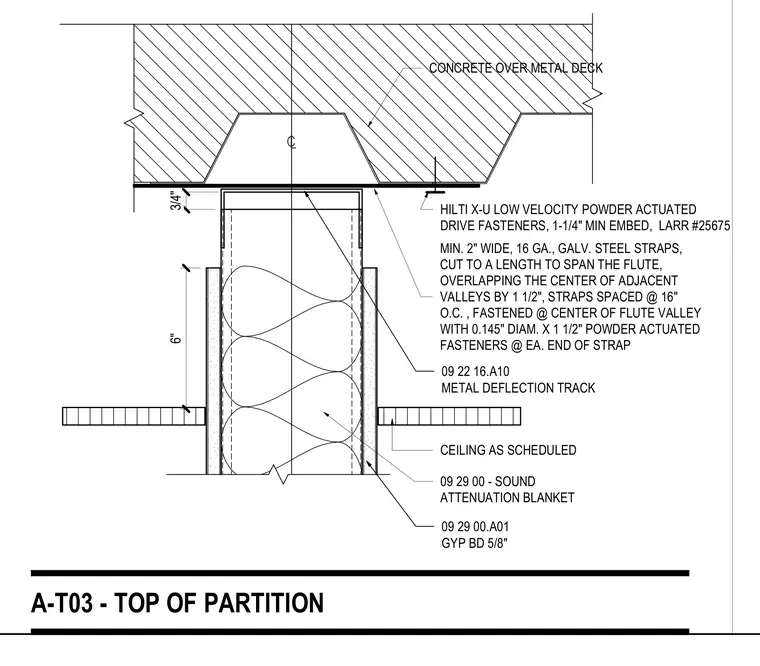

An interior partition head detail features a metal stud wall terminating beneath a concrete floor slab over a metal deck. A metal deflection track accommodates vertical slab movement at the partition head. Five-eighths-inch gypsum board clads both sides of the partition, enclosing a sound attenuation blanket within the stud cavity. Six inches below the deck, the ceiling assembly intersects the partition. Galvanized steel straps, two inches wide and sixteen gauge, span the deck flutes at sixteen inches on center. These straps are anchored into the center of each flute valley using zero-point-one-four-five-inch diameter by one-and-one-half-inch powder-actuated fasteners at each end.
