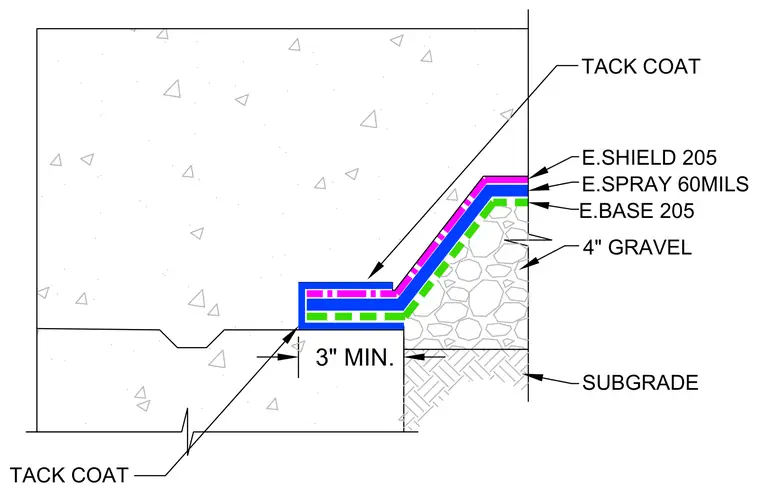

A multi-layer waterproofing assembly is applied over a subgrade and gravel base with a minimum three-inch clearance. The assembly consists of an E.Base 205 base layer, a sixty-mil spray-applied membrane, and an E.Shield 205 protective top layer. A tack coat is applied at the interface with the concrete substrate.
TACK COAT TACK COAT E.SHIELD 205 E.SPRAY 60MILS E.BASE 205 4" GRAVEL SUBGRADE 3" MIN.
