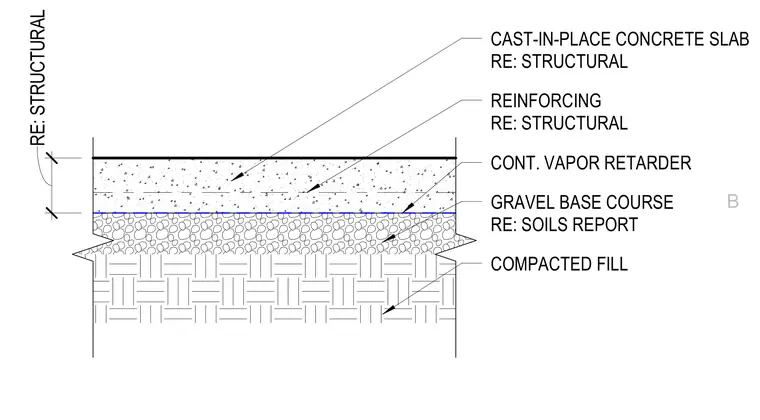

This slab-on-grade assembly consists of a cast-in-place concrete slab reinforced according to structural requirements. A continuous vapor retarder is installed directly beneath the concrete slab. Below the vapor retarder sits a gravel base course sized per the soils report, resting on compacted fill.
CONT. VAPOR RETARDER GRAVEL BASE COURSE RE: SOILS REPORT REINFORCING RE: STRUCTURAL COMPACTED FILL CAST-IN-PLACE CONCRETE SLAB RE: STRUCTURAL RE: STRUCTURAL B
