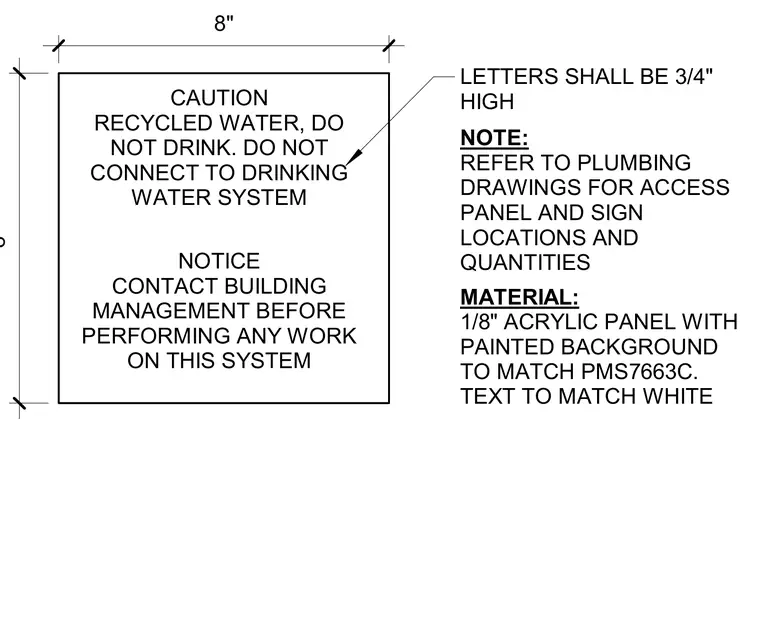

An eight-inch by eight-inch warning sign fabricated from a one-eighth-inch acrylic panel features a painted background matching PMS7663C with white text. The panel displays mandatory safety messaging including cautions against drinking or connecting the recycled water system to drinking water, alongside notices to contact building management before performing work. Lettering size is specified at three-quarters of an inch high. Reference notes direct users to plumbing drawings for access panel and sign locations and quantities.
LETTERS SHALL BE 3/4" HIGH 8" 8" CAUTION RECYCLED WATER, DO NOT DRINK. DO NOT CONNECT TO DRINKING WATER SYSTEM NOTICE CONTACT BUILDING MANAGEMENT BEFORE PERFORMING ANY WORK ON THIS SYSTEM NOTE: REFER TO PLUMBING DRAWINGS FOR ACCESS PANEL AND SIGN LOCATIONS AND QUANTITIES MATERIAL: 1/8" ACRYLIC PANEL WITH PAINTED BACKGROUND TO MATCH PMS7663C. TEXT TO MATCH WHITE
