A steel air duct passes through a wall assembly consisting of steel studs and gypsum board. A layer of duct insulation wraps the exterior of the steel air duct. The annular space between the insulated duct and the wall opening is sealed with a firestop system comprising a wrap strip and fill, void, or cavity material such as caulk or sealant bearing the UL classification marking for a one and two hour F rating and three-quarter and two hour T rating.

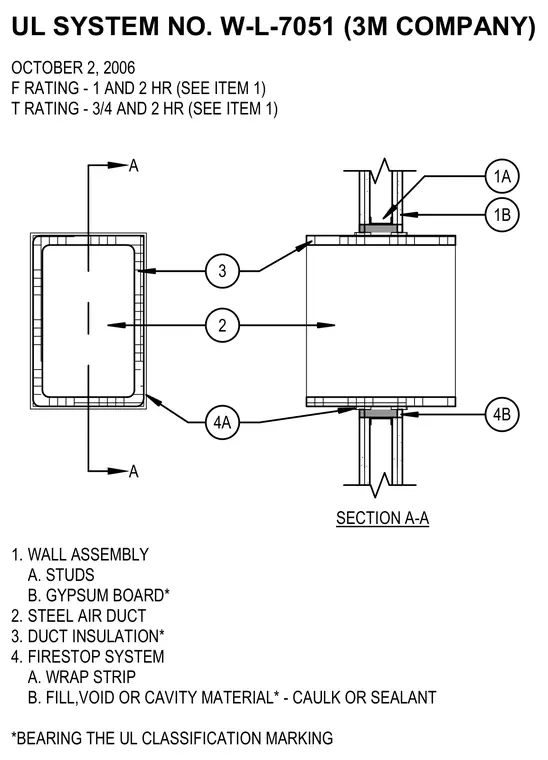

SECTION A-A OCTOBER 2, 2006 F RATING - 1 AND 2 HR (SEE ITEM 1) T RATING - 3/4 AND 2 HR (SEE ITEM 1) A A 1A 1B 3 2 4A 4B 1. WALL ASSEMBLY A. STUDS B. GYPSUM BOARD* 2. STEEL AIR DUCT 3. DUCT INSULATION* 4. FIRESTOP SYSTEM A. WRAP STRIP B. FILL,VOID OR CAVITY MATERIAL* - CAULK OR SEALANT *BEARING THE UL CLASSIFICATION MARKING UL SYSTEM NO. W-L-7051 (3M COMPANY)
