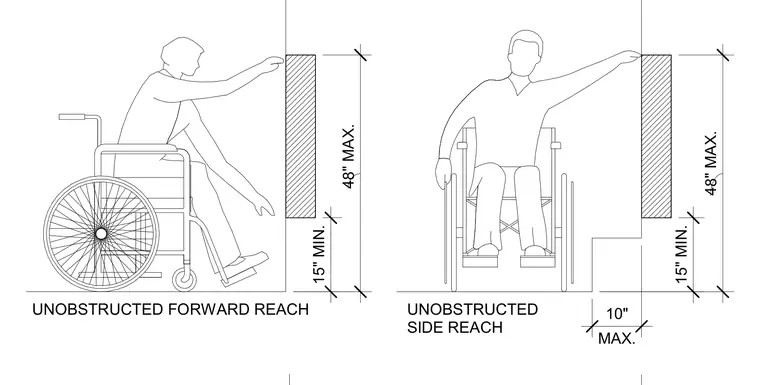

Accessibility diagrams establish reach ranges for wheelchair users with unobstructed forward and side approaches. The maximum allowable reach height is forty-eight inches above the finished floor. The minimum allowable reach height is fifteen inches above the finished floor. An unobstructed side reach allows a maximum depth of ten inches.
48" MAX. 15" MIN. 15" MIN. 48" MAX. UNOBSTRUCTED FORWARD REACH UNOBSTRUCTED SIDE REACH MAX. 10"
