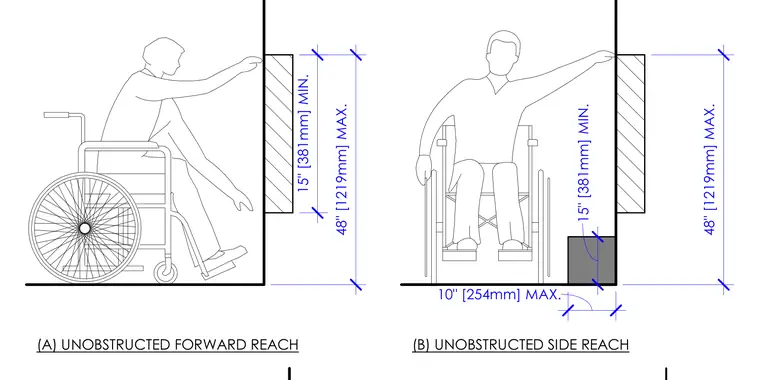

Forward and side reach ranges for wheelchair accessibility comply with standard design guidelines. The unobstructed forward reach maintains a minimum of fifteen inches and a maximum of forty-eight inches above the finished floor. The unobstructed side reach similarly restricts operable parts and controls to a maximum height of forty-eight inches with a ten-inch maximum depth obstruction.
(A) UNOBSTRUCTED FORWARD REACH 15" [381mm] MIN. 48" [1219mm] MAX. 10" [254mm] MAX. 48" [1219mm] MAX. 15" [381mm] MIN. (B) UNOBSTRUCTED SIDE REACH
