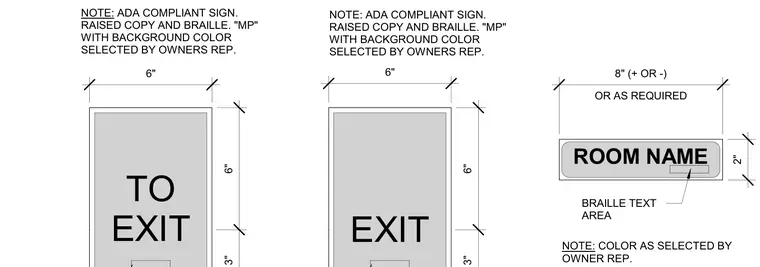

ADA compliant exit and room name signs feature raised copy and braille text areas with custom background colors selected by the owner's representative. Exit signs measure six inches wide by nine inches high, while room identification signs measure eight inches wide by two inches high or as required.
3" 6" 6" EXIT NOTE: ADA COMPLIANT SIGN. RAISED COPY AND BRAILLE. "MP" WITH BACKGROUND COLOR SELECTED BY OWNERS REP. 3" 6" 6" TO EXIT NOTE: ADA COMPLIANT SIGN. RAISED COPY AND BRAILLE. "MP" WITH BACKGROUND COLOR SELECTED BY OWNERS REP. ROOM NAME NOTE: COLOR AS SELECTED BY OWNER REP. 2" OR AS REQUIRED 8" (+ OR -) BRAILLE TEXT AREA
