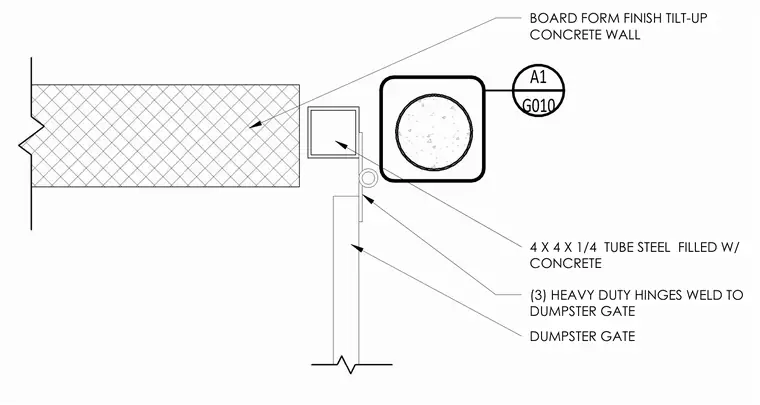

The dumpster gate is attached to a 4x4x1/4-inch hollow structural section tube steel post filled with concrete using three heavy-duty hinges welded to the gate. The steel post stands adjacent to a board-form finish tilt-up concrete wall.
BOARD FORM FINISH TILT-UP CONCRETE WALL 4 X 4 X 1/4 TUBE STEEL FILLED W/ CONCRETE DUMPSTER GATE (3) HEAVY DUTY HINGES WELD TO DUMPSTER GATE G010 A1
