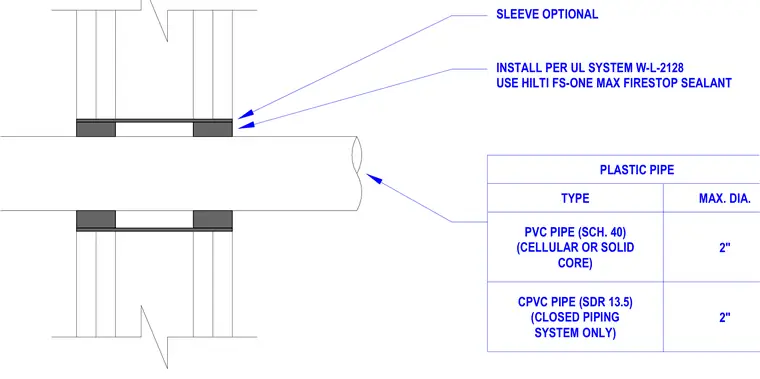

A plastic pipe penetrates a gypsum wall assembly with an optional sleeve installed in the opening. The annular space around the pipe is sealed with Hilti FS-One Max firestop sealant in accordance with UL System W-L-2128. Permitted pipe types include up to 2-inch diameter PVC schedule 40 pipe and 2-inch diameter CPVC SDR 13.5 pipe for closed piping systems only.
INSTALL PER UL SYSTEM W-L-2128 USE HILTI FS-ONE MAX FIRESTOP SEALANT SLEEVE OPTIONAL PLASTIC PIPE TYPE MAX. DIA. PVC PIPE (SCH. 40) (CELLULAR OR SOLID CORE) 2" CPVC PIPE (SDR 13.5) (CLOSED PIPING SYSTEM ONLY) 2"
