General · G-XBXKM

Nonmetallic Pipe Firestop System UL C-AJ-2002

Materials

Elements

About this detail

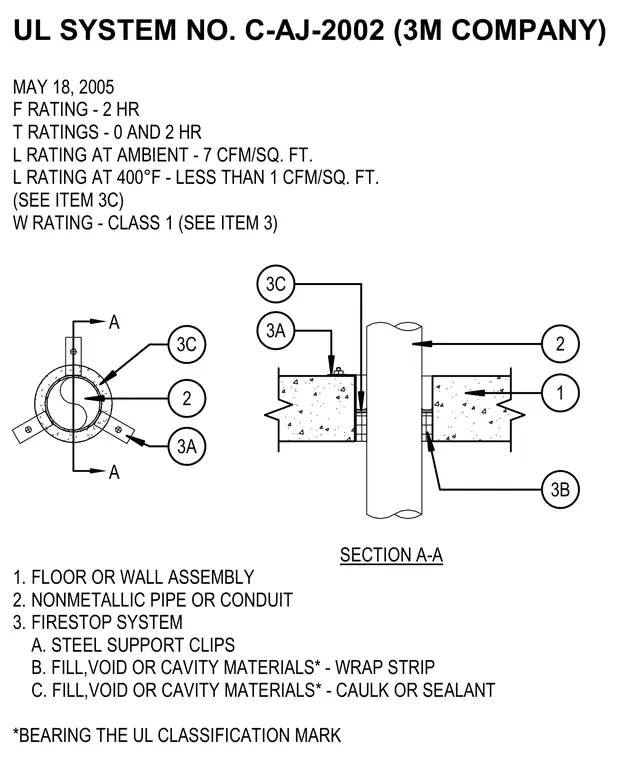

A tested firestop system for nonmetallic pipe or conduit penetrating a concrete floor or wall assembly comprises a nonmetallic pipe centered within an annular space through the floor or wall assembly. The firestop system includes steel support clips, wrap strip material, and caulk or sealant bearing the UL classification mark. The assembly achieves a 2-hour F rating, 0 and 2-hour T ratings, Class 1 W rating, and specified L ratings at ambient and 400 degrees Fahrenheit.
