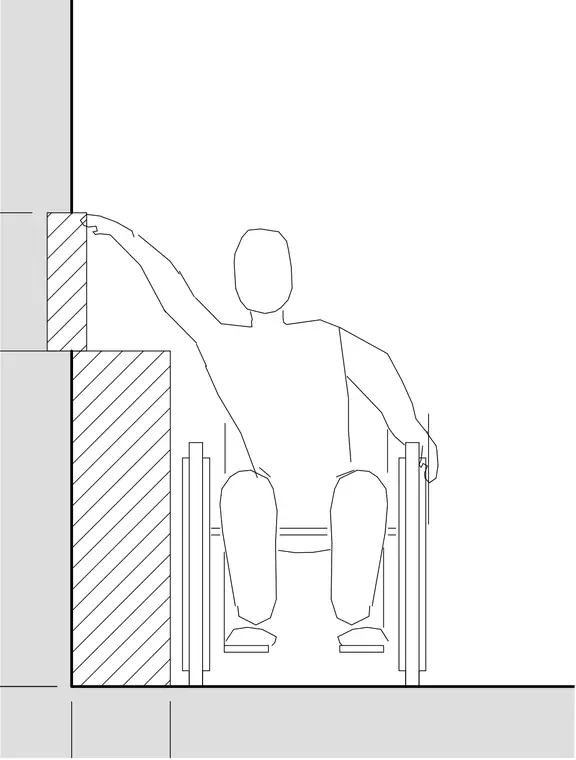

Unobstructed high side reach parameters for a wheelchair user. A seated occupant in a wheelchair reaches upward toward a wall-mounted element to establish vertical reach clearance limits.
