Internally lit exit sign powered by an emergency power system to remain illuminated at all times. Lettering requires a minimum height of 6 inches with a 3/8-inch minimum spacing, except for the letter 'I'. Border clearances mandate a 3/4-inch minimum on the sides and a 2-inch minimum elsewhere.

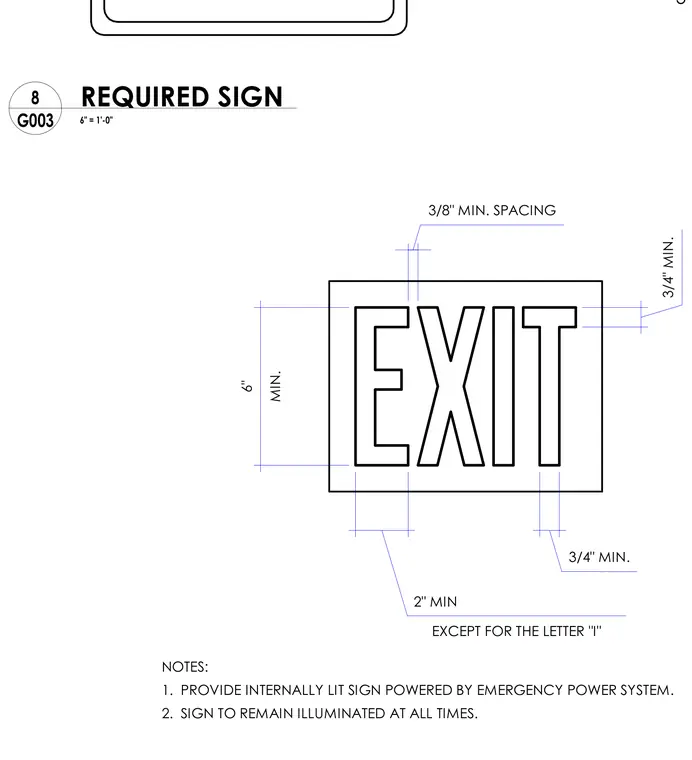

3/8" MIN. SPACING 6" MIN. 3/4" MIN. 3/4" MIN. 2" MIN EXCEPT FOR THE LETTER "I" NOTES: 1. PROVIDE INTERNALLY LIT SIGN POWERED BY EMERGENCY POWER SYSTEM. 2. SIGN TO REMAIN ILLUMINATED AT ALL TIMES. 3'=1'-0" 6" = 1'-0" G003 8 REQUIRED SIGN
