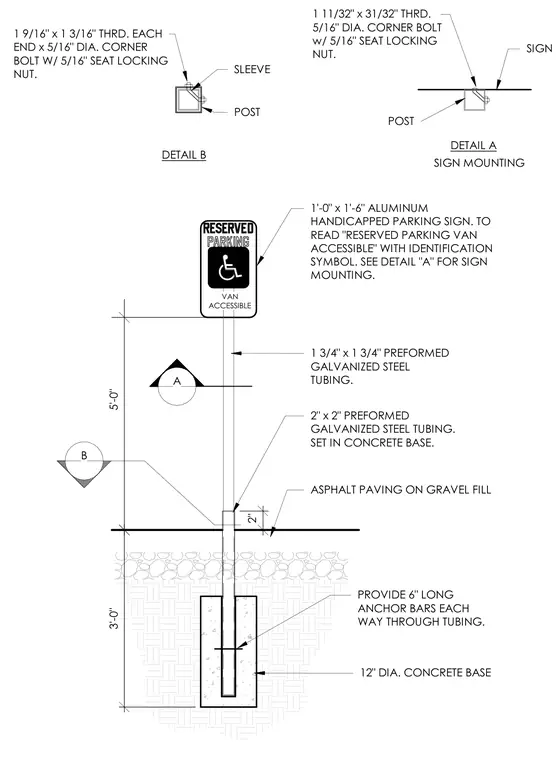

An exterior handicapped parking sign assembly is installed at an asphalt paving area over gravel fill. The sign consists of a 1 foot by 1 foot 6 inch aluminum reserved parking sign mounted to a 1 inch by 1 inch preformed galvanized steel tubing post. The post slips into a larger 2 inch by 2 inch preformed galvanized steel tubing sleeve set inside a 12 inch diameter concrete base embedded 3 feet deep. Six inch long anchor bars run each way through the tubing within the concrete foundation for stability. Detail A and Detail B show the specific bolted connections using threaded corner bolts with seat locking nuts at the sign mounting and post sleeve junctions.
5'-0" 3'-0" 2" VAN ACCESSIBLE A B POST SLEEVE 1 9/16" x 1 3/16" THRD. EACH END x 5/16" DIA. CORNER BOLT W/ 5/16" SEAT LOCKING NUT. 1 11/32" x 31/32" THRD. 5/16" DIA. CORNER BOLT w/ 5/16" SEAT LOCKING NUT. SIGN POST DETAIL B DETAIL A SIGN MOUNTING 12" DIA. CONCRETE BASE PROVIDE 6" LONG ANCHOR BARS EACH WAY THROUGH TUBING. ASPHALT PAVING ON GRAVEL FILL 2" x 2" PREFORMED GALVANIZED STEEL TUBING. SET IN CONCRETE BASE. 1 3/4" x 1 3/4" PREFORMED GALVANIZED STEEL TUBING. 1'-0" x 1'-6" ALUMINUM HANDICAPPED PARKING SIGN. TO READ "RESERVED PARKING VAN ACCESSIBLE" WITH IDENTIFICATION SYMBOL. SEE DETAIL "A" FOR SIGN MOUNTING.
