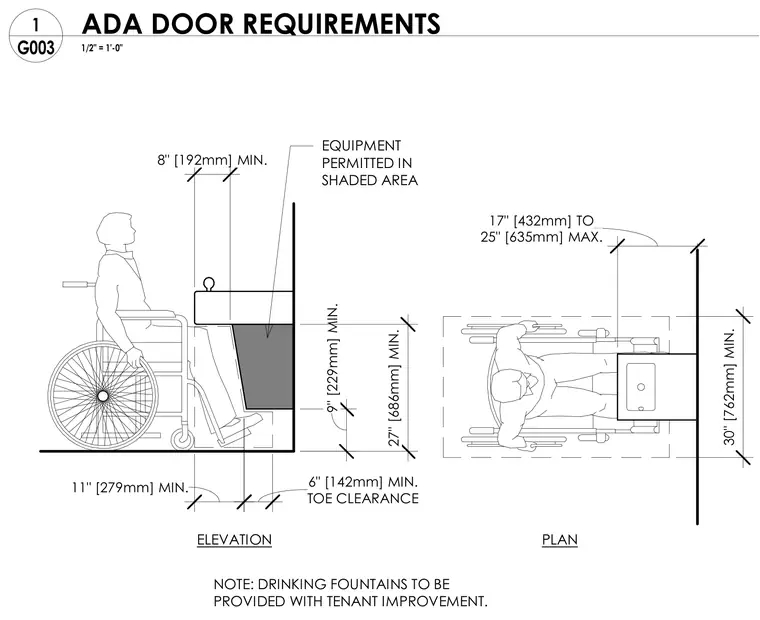

This drawing outlines ADA accessibility standards for drinking fountains, detailing minimum toe and knee clearances. The elevation view indicates a minimum 27-inch vertical knee clearance, a minimum 9-inch toe height, and a minimum 6-inch toe depth, along with an 8-inch minimum clear space under the fixture. The plan and elevation layouts specify a clear floor space of 17 to 25 inches maximum depth and 30 inches minimum width for wheelchair access. Equipment is permitted only within the shaded volume underneath the unit. A note states that drinking fountains are to be provided with tenant improvement.
ELEVATION PLAN EQUIPMENT PERMITTED IN SHADED AREA 8" [192mm] MIN. 9" [229mm] MIN. 27" [686mm] MIN. TOE CLEARANCE 6" [142mm] MIN. 11" [279mm] MIN. 25" [635mm] MAX. 17" [432mm] TO 30" [762mm] MIN. NOTE: DRINKING FOUNTAINS TO BE PROVIDED WITH TENANT IMPROVEMENT. 1/2" = 1'-0" G003 1 ADA DOOR REQUIREMENTS
