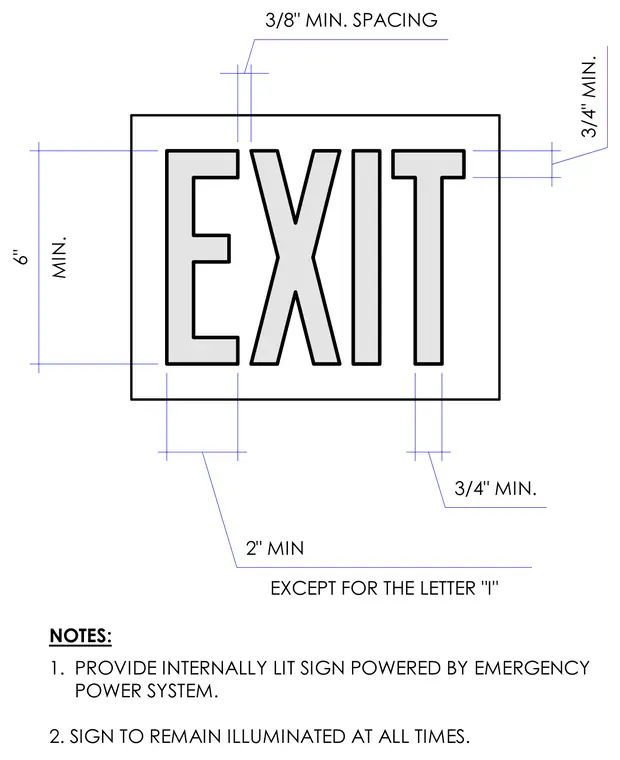

An internally lit exit sign features standard letter sizing with a minimum height of six inches and stroke spacing requirements of three-eighths of an inch. Letter spacing maintains a minimum of two inches, with specific margins including three-quarters of an inch minimums except for the letter 'I'. The sign connects to an emergency power system and remains continuously illuminated.
3/8" MIN. SPACING 6" MIN. 3/4" MIN. 3/4" MIN. 2" MIN EXCEPT FOR THE LETTER "I" NOTES: 1. PROVIDE INTERNALLY LIT SIGN POWERED BY EMERGENCY POWER SYSTEM. 2. SIGN TO REMAIN ILLUMINATED AT ALL TIMES.
