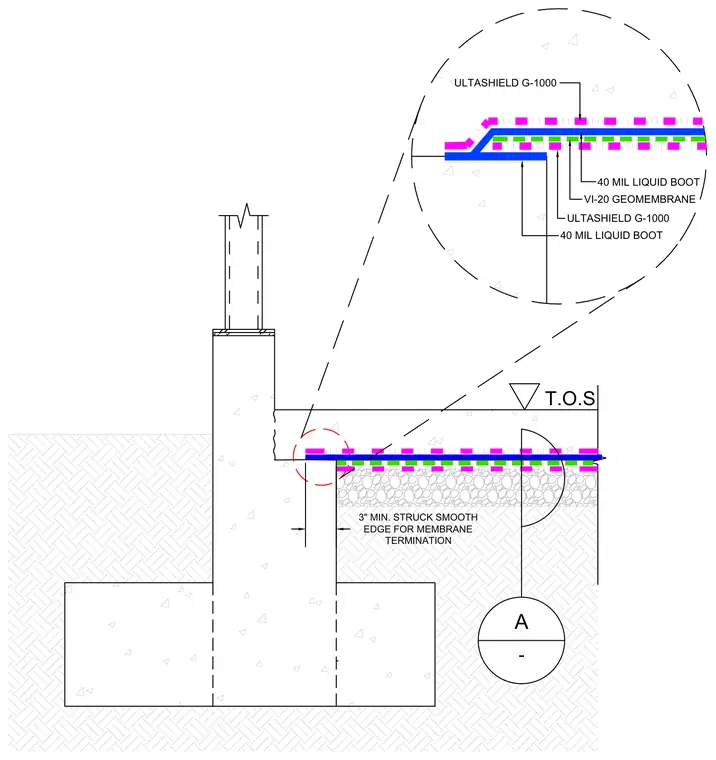

A multi-layer waterproofing system terminates at an exterior concrete footing with a minimum three-inch struck smooth edge for membrane termination. The assembly incorporates a forty mil Liquid Boot layer, a VI-20 geomembrane, and an Ultashield G-1000 protective coating.
A - 3" MIN. STRUCK SMOOTH EDGE FOR MEMBRANE TERMINATION ULTASHIELD G-1000 40 MIL LIQUID BOOT VI-20 GEOMEMBRANE 40 MIL LIQUID BOOT ULTASHIELD G-1000 T.O.S
