Firestop System Detail for Penetrating Pipe in Wall

About this detail

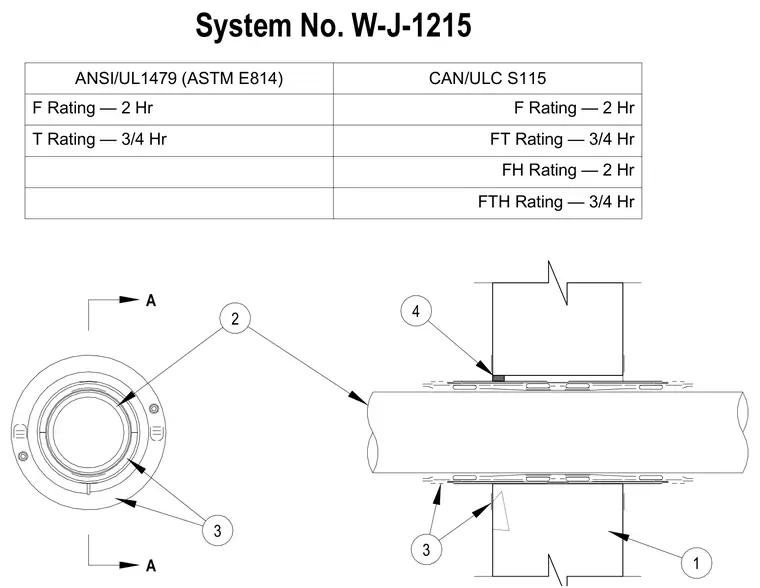

A pipe penetrates a rated wall assembly with firestop materials applied to achieve specific hourly ratings under ANSI/UL1479 and CAN/ULC S115 standards. The assembly provides a 2-hour F rating and a 3/4-hour T rating under UL standards, with corresponding ratings for Canadian standards. Numbered callouts identify the components of the firestop system, including the wall assembly, penetrating item, and firestop sealants or devices. An elevation view of the penetration and a cross-section show the installed configuration.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
