An internally lit exit sign is powered by an emergency power system and remains illuminated at all times. The sign features letters with a height of six inches minimum, letter spacing of three-eighths of an inch minimum, stroke spacing of three-quarters of an inch minimum, and a stroke width of two inches minimum except for the letter "I".

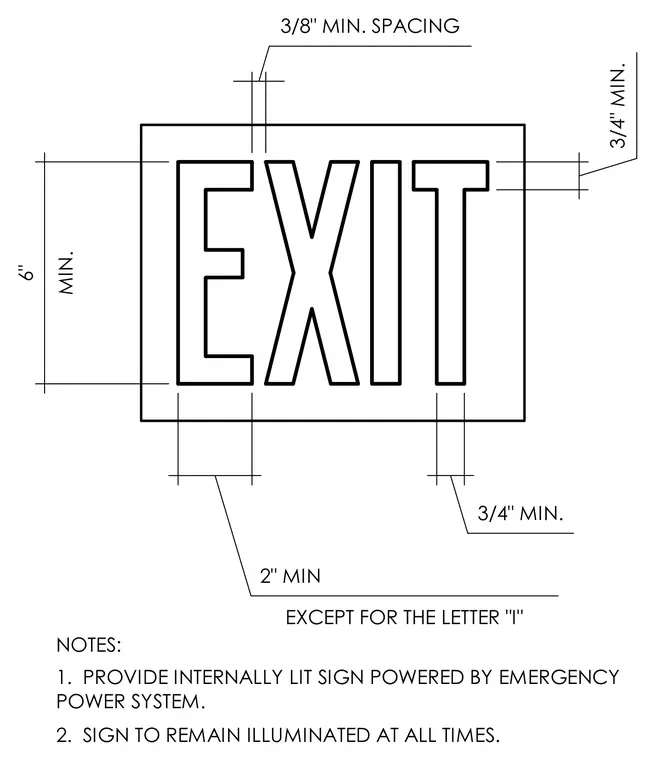

3/8" MIN. SPACING 6" MIN. 3/4" MIN. 3/4" MIN. 2" MIN EXCEPT FOR THE LETTER "I" NOTES: 1. PROVIDE INTERNALLY LIT SIGN POWERED BY EMERGENCY POWER SYSTEM. 2. SIGN TO REMAIN ILLUMINATED AT ALL TIMES.
