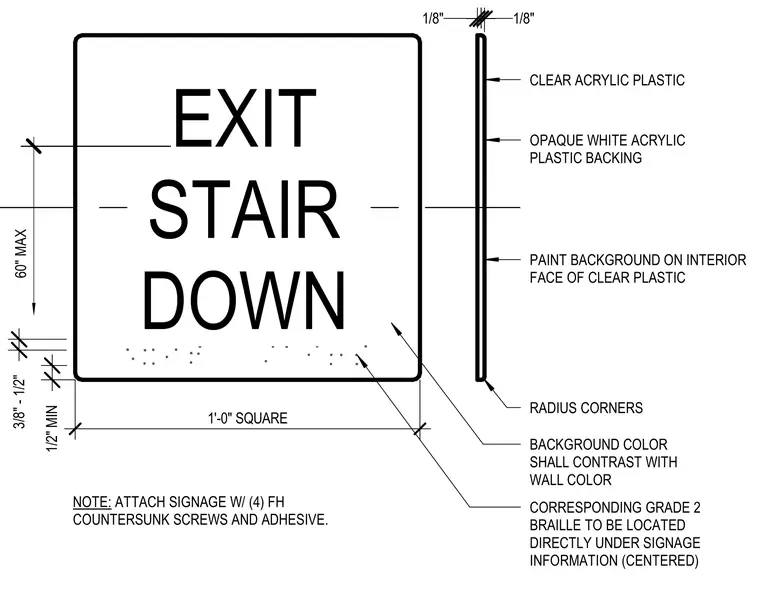

The assembly consists of a square clear acrylic plastic sign face with radius corners and an opaque white acrylic plastic backing. The background color is painted on the interior face of the clear plastic and must contrast with the supporting wall color. Corresponding Grade 2 braille is located directly centered under the signage information. The sign is attached using four flathead countersunk screws and adhesive, mounted at a maximum height of 60 inches with a clearance range of 3/8 to 1/2 inch.
EXIT STAIR DOWN 1/8" 1/8" 1'-0" SQUARE CLEAR ACRYLIC PLASTIC OPAQUE WHITE ACRYLIC PLASTIC BACKING PAINT BACKGROUND ON INTERIOR FACE OF CLEAR PLASTIC RADIUS CORNERS BACKGROUND COLOR SHALL CONTRAST WITH WALL COLOR CORRESPONDING GRADE 2 BRAILLE TO BE LOCATED DIRECTLY UNDER SIGNAGE INFORMATION (CENTERED) 1/2" MIN 3/8" - 1/2" NOTE: ATTACH SIGNAGE W/ (4) FH COUNTERSUNK SCREWS AND ADHESIVE. 60" MAX
