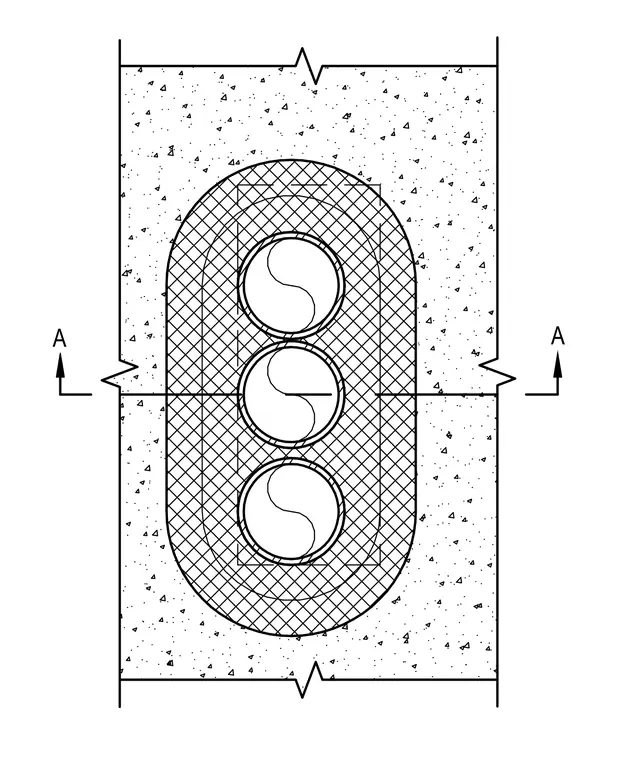

Three circular pipe sleeves pass through a cast-in-place concrete wall assembly, arranged vertically within a formed core penetration. The annular space around the sleeves is filled with insulation and a designated packing material. Section cut A-A indicates the horizontal plane through the middle sleeve opening. The concrete substrate features typical breakout lines indicating a cropped section view.
