A six-inch diameter steel pipe is filled with concrete and finished with safety yellow paint, standing three feet six inches tall above the floor surface. The pipe is welded to a ten-inch square by one-quarter-inch thick steel base plate. Four five-eighths-inch diameter anchor bolts with washers secure the base plate to the concrete slab. A one-quarter-inch neoprene pad sits beneath the base plate with sealant applied all around. The supporting concrete slab is thickened to eight inches at the bollard location.

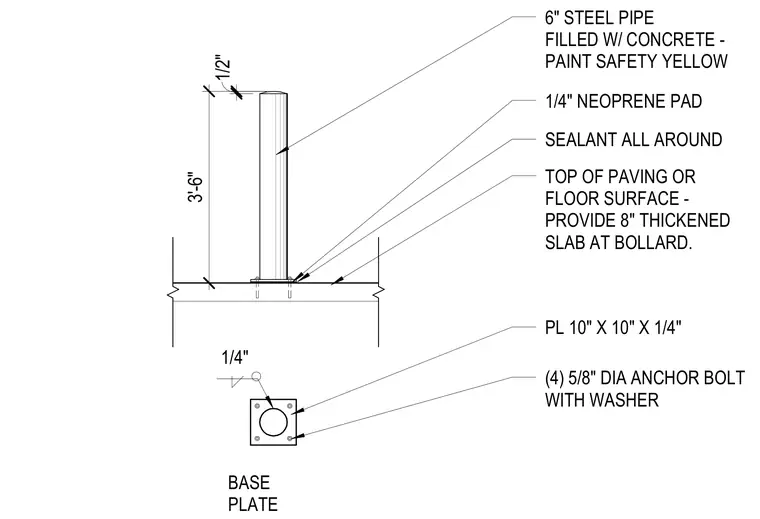

6" STEEL PIPE FILLED W/ CONCRETE - PAINT SAFETY YELLOW TOP OF PAVING OR FLOOR SURFACE - PROVIDE 8" THICKENED SLAB AT BOLLARD. PL 10" X 10" X 1/4" (4) 5/8" DIA ANCHOR BOLT WITH WASHER BASE PLATE 1/4" 3'-6" 1/2" 1/4" NEOPRENE PAD SEALANT ALL AROUND
