Architectural · G-TE7MB

Forward Approach Accessibility Clearance

About this detail

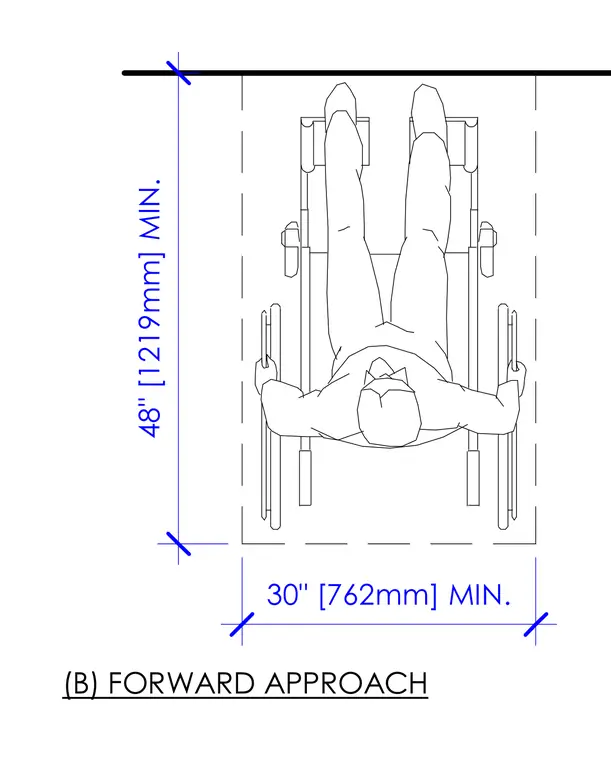

Wheelchair forward approach layout requiring a minimum clearance of forty-eight inches by thirty inches.

(B) FORWARD APPROACH 48" [1219mm] MIN. 30" [762mm] MIN.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
