Architectural · G-TBN4A

Tactile Exit Sign

Elements

About this detail

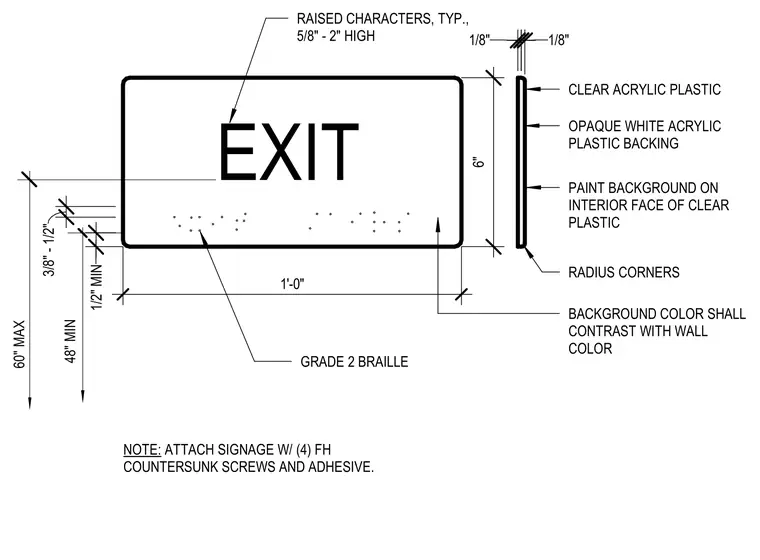

The tactile exit sign assembly consists of a clear acrylic plastic faceplate with radius corners, an opaque white acrylic plastic backing, and a painted background applied to the interior face of the clear plastic. Raised characters measuring between 5/8 inch and 2 inches in height are provided alongside Grade 2 braille. The overall sign dimensions are 1 foot by 6 inches with a thickness of 1/8 inch. The sign is installed with four flat head countersunk screws and adhesive, positioned at a mounting height ranging from a 48-inch minimum to a 60-inch maximum above the finished floor.
