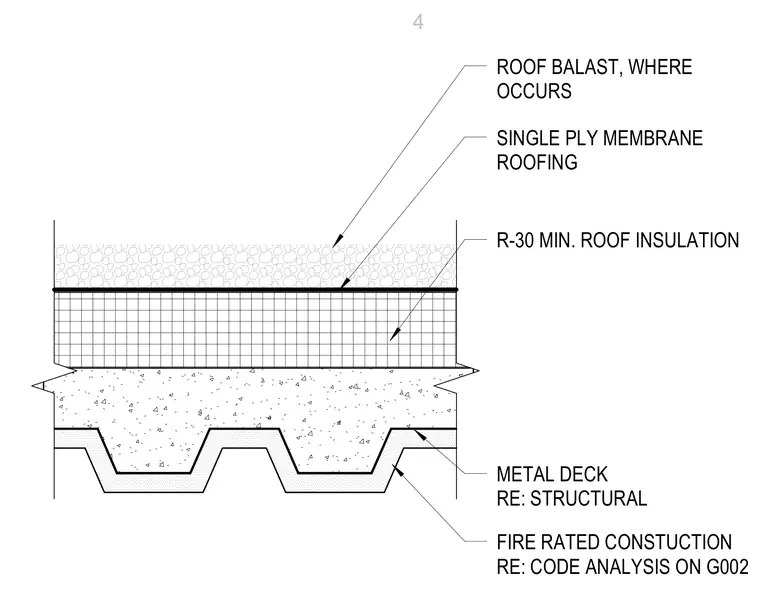

This roof assembly consists of a single-ply membrane roofing protected by a roof ballast layer where applicable, installed directly over a minimum R-30 roof insulation layer. The insulation is supported by a structural metal deck containing fire-rated construction detailed per the code analysis on sheet G002.
FIRE RATED CONSTUCTION RE: CODE ANALYSIS ON G002 METAL DECK RE: STRUCTURAL SINGLE PLY MEMBRANE ROOFING R-30 MIN. ROOF INSULATION ROOF BALAST, WHERE OCCURS 4
