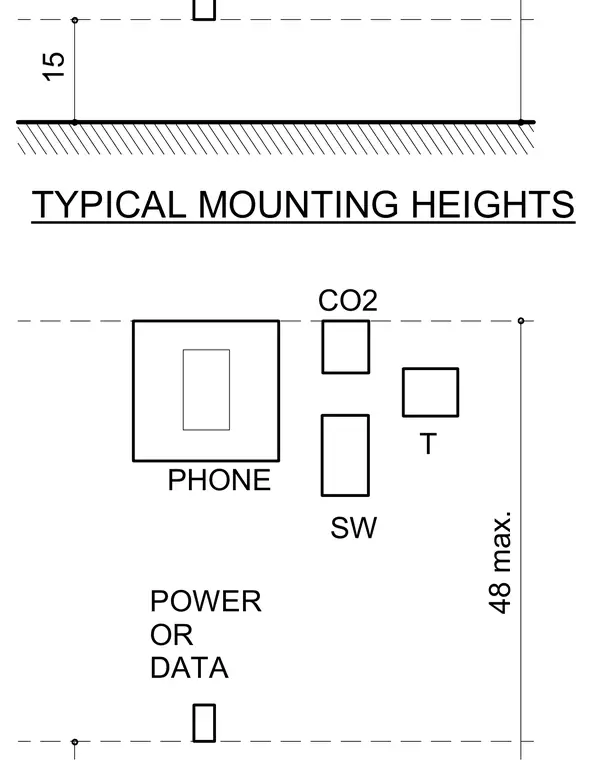

Electrical and data devices including power outlets, telephones, CO2 sensors, and switches maintain standardized vertical clearances above finished floor. Outlets and switches are positioned with a maximum reach height of forty-eight inches, while specific auxiliary devices are set to designated reference elevations.
POWER OR DATA T CO2 15 SW 48 max. PHONE TYPICAL MOUNTING HEIGHTS
