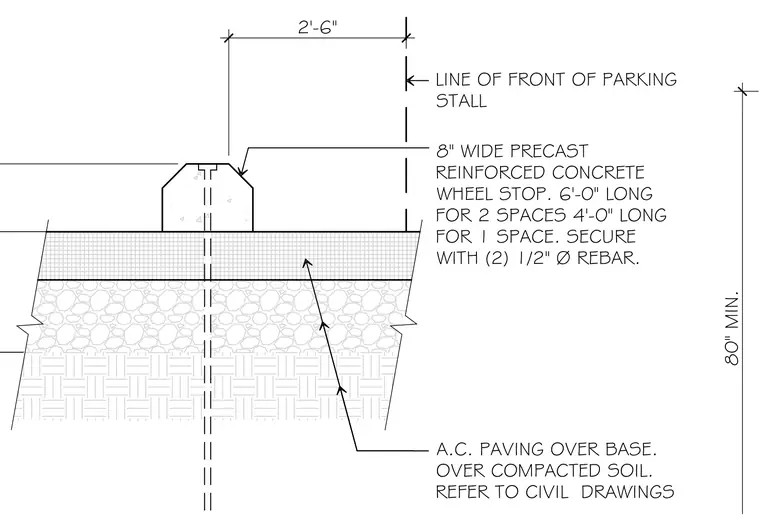

An eight-inch wide precast reinforced concrete wheel stop is set upon asphaltic concrete paving over a base and compacted soil. The wheel stop is secured in place with two one-half inch diameter rebar dowels extending down through the paving assembly. The front face of the wheel stop is positioned at a specified offset from the line of the front of the parking stall. Clearances and specific paving design details refer to civil drawings.
8" WIDE PRECAST REINFORCED CONCRETE WHEEL STOP. 6'-0" LONG FOR 2 SPACES 4'-0" LONG FOR 1 SPACE. SECURE WITH (2) 1/2" Ø REBAR. A.C. PAVING OVER BASE. OVER COMPACTED SOIL. REFER TO CIVIL DRAWINGS LINE OF FRONT OF PARKING STALL 27" 80" MIN. 2'-6" I 7^ V- \ ZTX
