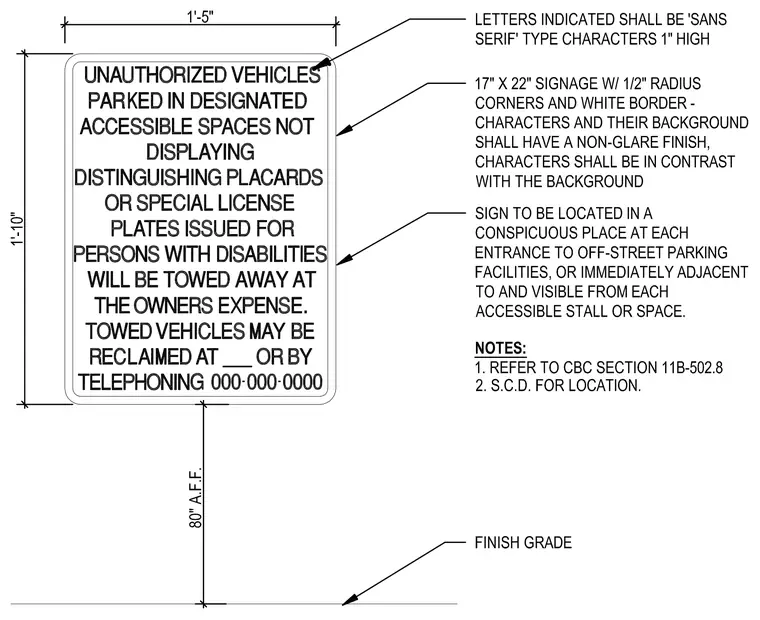

An accessible parking sign measures 17 inches by 22 inches with 1/2-inch radius corners and a white border. The sign features a non-glare finish with contrasting characters, utilizing sans serif type characters 1 inch high. It mounts at 80 inches above finished floor to finish grade and locates at each entrance to off-street parking facilities or adjacent to each accessible stall. The installation references California Building Code section 11B-502.8.
