Corridors require a thirty-six inch minimum width for an occupancy load under nine, and a forty-four inch minimum width for an occupancy load over ten. A ninety-degree turn layout establishes minimum clearance dimensions, including a forty-eight inch or greater dimension for turning maneuvers.

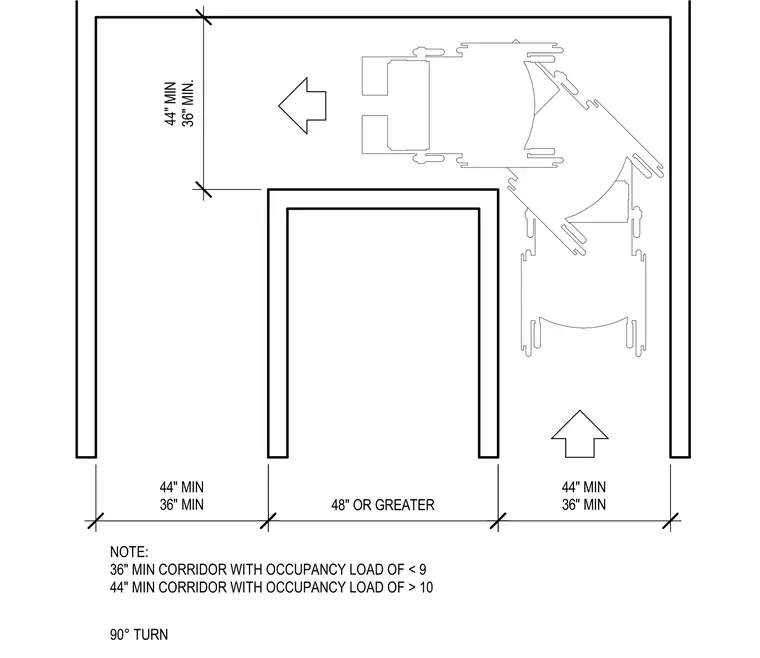

44" MIN 36" MIN. NOTE: 36" MIN CORRIDOR WITH OCCUPANCY LOAD OF < 9 44" MIN CORRIDOR WITH OCCUPANCY LOAD OF > 10 44" MIN 36" MIN 48" OR GREATER 44" MIN 36" MIN 90° TURN
