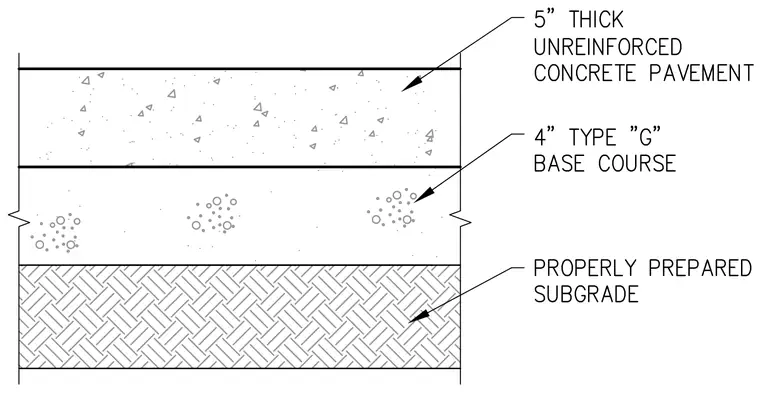

The pavement assembly consists of a five-inch thick unreinforced concrete pavement resting on a four-inch type G base course. The base course is supported by a properly prepared subgrade beneath.
