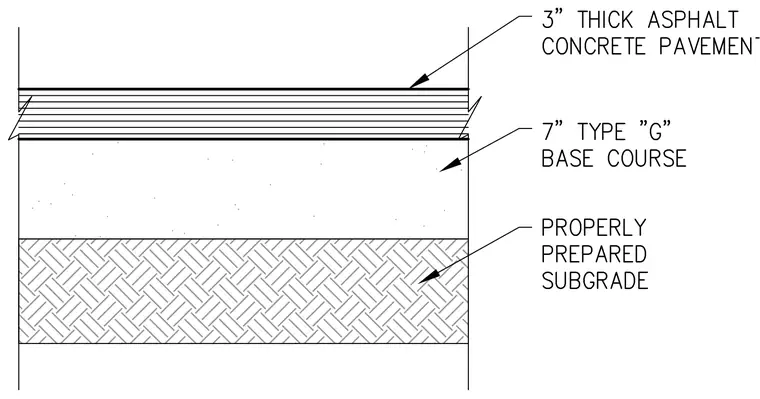

The assembly consists of a 3-inch thick asphalt concrete pavement wearing course placed over a 7-inch Type G base course. The base course rests directly upon a properly prepared subgrade.
