Airfield FOD Check Point Sign and Post Detail

Materials

Steel Timber / Wood Aluminum Metal (misc.)

Elements

Drainage Entrances

Connections

Bolted Connection

About this detail

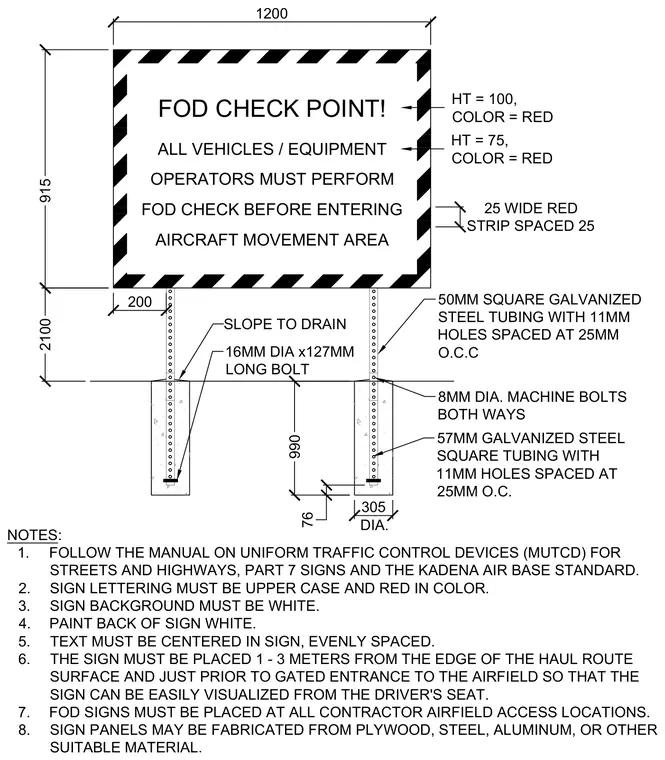

The assembly consists of a sign panel with red lettering and a red striped border mounted on 50 millimeter square galvanized steel tubing posts with 11 millimeter holes spaced at 25 millimeters on center. These inner posts slide into 57 millimeter galvanized steel square tubing sleeves embedded 990 millimeters into 305 millimeter diameter concrete footings and secured with 8 millimeter diameter machine bolts both ways. The sign panel measures 1200 millimeters wide by 915 millimeters high with a top clearance of 2100 millimeters above the concrete footings. Sign panels may be fabricated from plywood, steel, aluminum, or other suitable material with a white background and centered upper-case red lettering. Footings feature a sloped top to drain.
