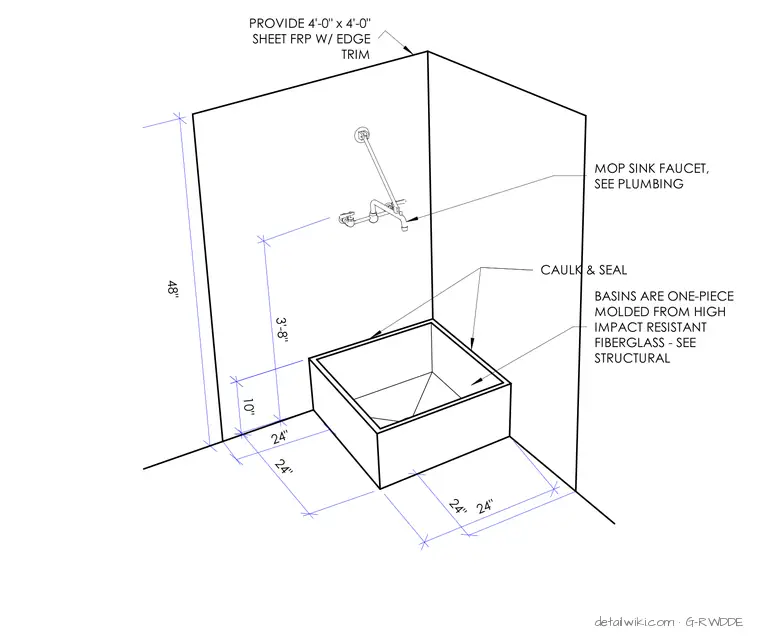

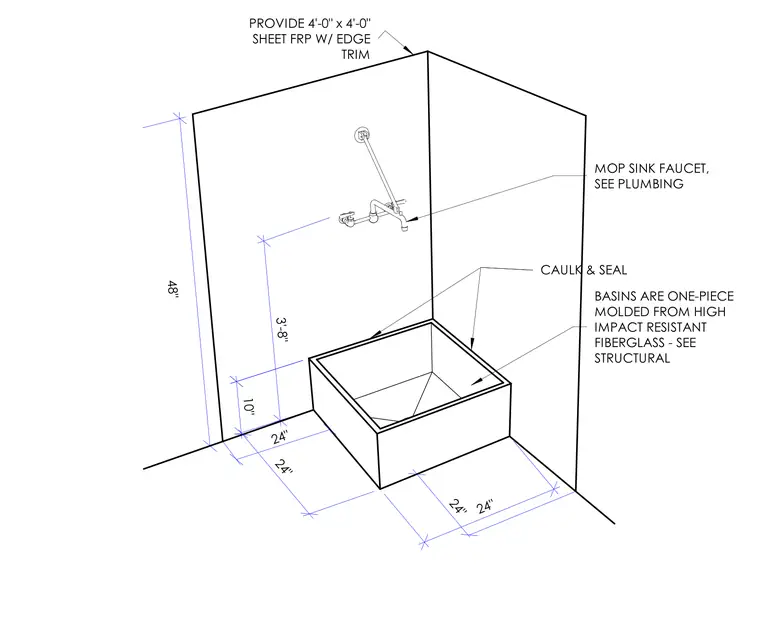

This assembly consists of a one-piece molded high-impact resistant fiberglass basin installed in a corner. The basin is sealed to the adjacent walls with caulk. A four-foot by four-foot sheet of fiber-reinforced plastic with edge trim is installed on the wall above the basin for splash protection. A mop sink faucet is mounted to the wall, with plumbing connections coordinated per the plumbing drawings.
Text on the drawing
24" 10" 48" 24" 3'-8" PROVIDE 4'-0" x 4'-0" SHEET FRP W/ EDGE TRIM BASINS ARE ONE-PIECE MOLDED FROM HIGH IMPACT RESISTANT FIBERGLASS - SEE STRUCTURAL CAULK & SEAL MOP SINK FAUCET, SEE PLUMBING 24" 24"
