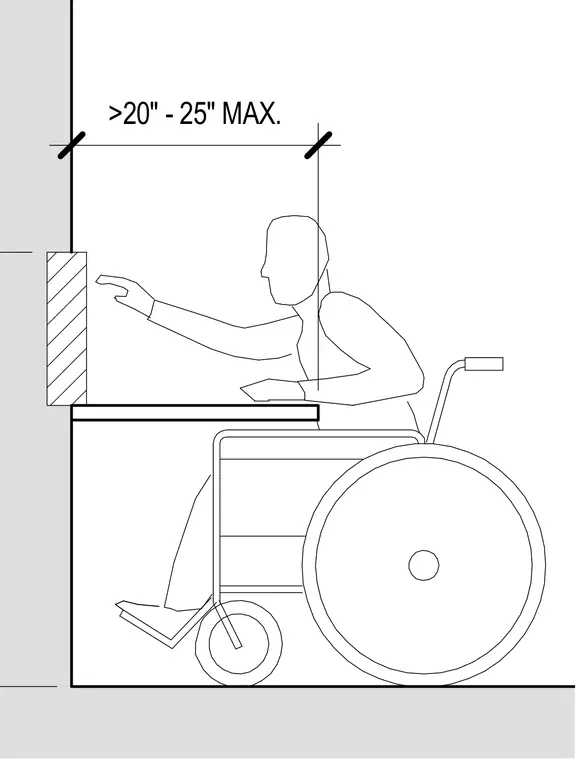

An accessible reach range diagram for an obstructed high forward approach for a person using a wheelchair. A dimension line indicates a maximum depth of twenty to twenty-five inches for the obstruction over the reach area.
>20" - 25" MAX.
