ADA Signage Layout and Area of Refuge Door Clearances

Elements

About this detail

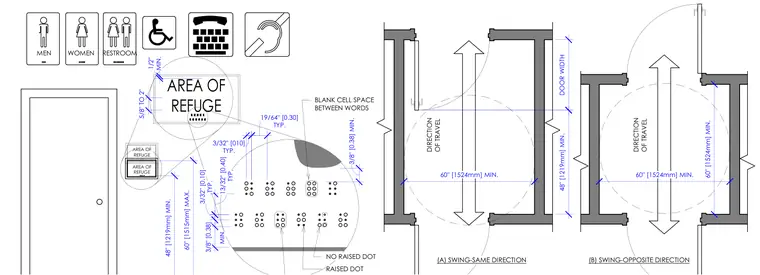

Building signage and accessibility compliance layouts detail raised character dimensions, braille spacing configurations, and door swing turning radii. Signage details specify minimum and maximum heights, raised dot diameters, and blank cell spacing for men, women, and area of refuge signs. Door clearance diagrams establish minimum sixty-inch turning circles and approach dimensions for same-direction and opposite-direction door swings.
