Tactile Exit Signage Details and Mounting Requirements

Materials

Elements

About this detail

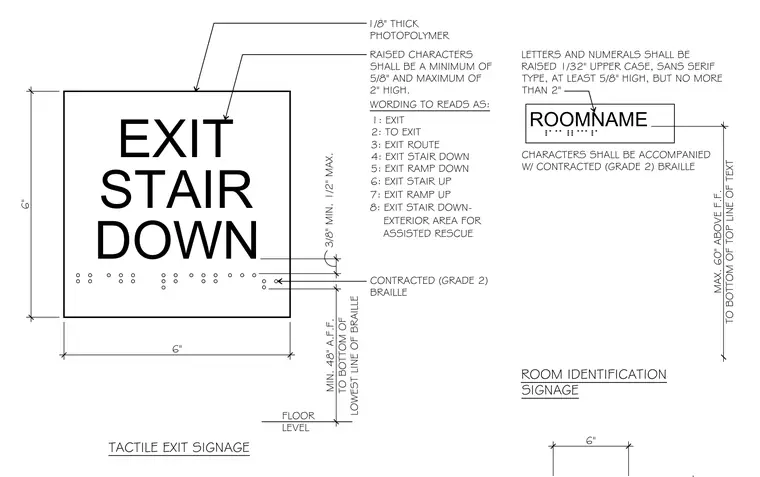

Tactile exit signage consists of an 1/8-inch thick photopolymer panel with raised characters and contracted Grade 2 Braille. Letters and numerals are raised 1/32-inch in an upper case sans serif type, standing between 5/8-inch and 2-inch high. The sign includes standard wording configurations for exit routes, stairways, and ramps. Braille dots are positioned between 3/8-inch minimum and 1/2-inch maximum below the text, with the lowest line of Braille located between 48 inches minimum above the finished floor. The top line of text is mounted at a maximum of 60 inches above the finished floor.
