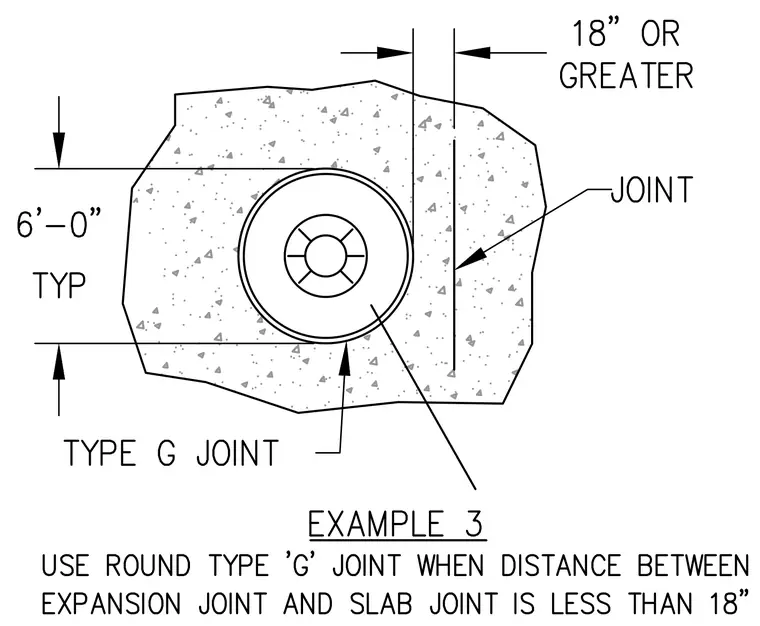

A round Type G joint is placed within a concrete slab when the distance between an expansion joint and a slab joint is less than eighteen inches. Typical spacing dimensions of six feet are maintained for the installation.
