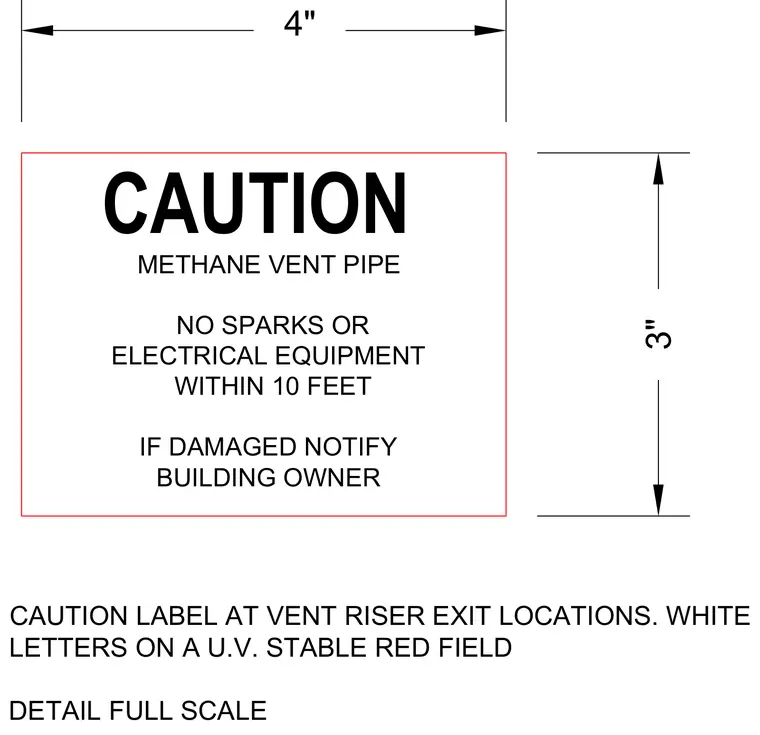

This full-scale sign detail specifies a warning label with white letters on an ultraviolet-stable red field for methane vent riser exit locations. The text reads caution methane vent pipe, no sparks or electrical equipment within 10 feet, and if damaged notify building owner.
CAUTION LABEL AT VENT RISER EXIT LOCATIONS. WHITE LETTERS ON A U.V. STABLE RED FIELD DETAIL FULL SCALE 4" 3" CAUTION METHANE VENT PIPE NO SPARKS OR ELECTRICAL EQUIPMENT WITHIN 10 FEET IF DAMAGED NOTIFY BUILDING OWNER
