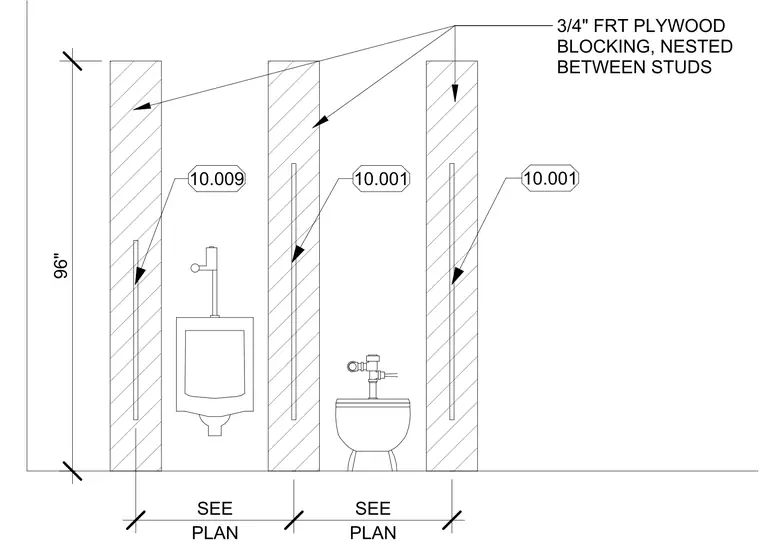

Three-quarter inch fire-retardant treated plywood blocking is installed vertically within the wall cavity, nested between the studs to provide structural support for toilet partitions and urinal screens. The blocking spans a total height of ninety-six inches. Specific mounting locations for the partition hardware are referenced to the architectural floor plans.
