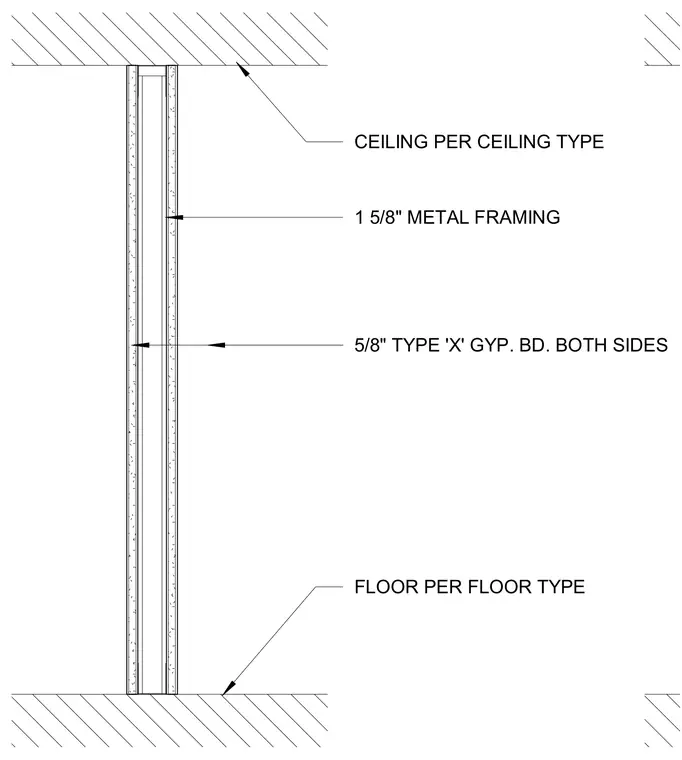

The assembly consists of one-and-five-eighths-inch metal framing studs faced with five-eighths-inch Type X gypsum board on both sides. The partition terminates at the floor assembly below and the ceiling assembly above, with both floor and ceiling finishes specified per their respective schedule types.
1 5/8" METAL FRAMING 5/8" TYPE 'X' GYP. BD. BOTH SIDES FLOOR PER FLOOR TYPE CEILING PER CEILING TYPE
