An accessible locker mounts on a 6-inch poured concrete base, with a total height of 48 inches maximum. An adjacent bench provides a minimum 42-inch floor clear space for accessibility. The bench seat height ranges from 17 to 19 inches, with a depth of 20 to 24 inches. The bench must withstand 250 pounds of force in any direction at any point and requires a non-slip surface with drainage. A backrest is not required if the bench is securely attached to the wall.
Text on the drawing

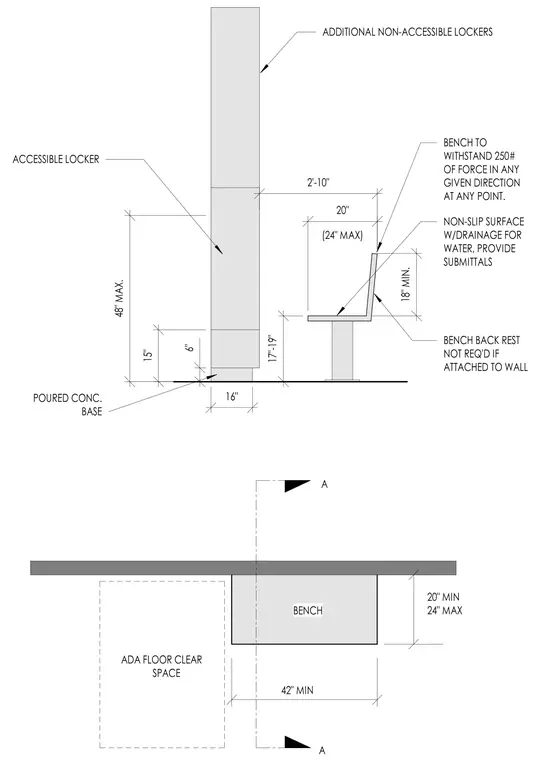

15" 48" MAX. 2'-10" 20" (24" MAX) 17"-19" 18" MIN. 16" 6" ADDITIONAL NON-ACCESSIBLE LOCKERS ACCESSIBLE LOCKER BENCH TO WITHSTAND 250# OF FORCE IN ANY GIVEN DIRECTION AT ANY POINT. NON-SLIP SURFACE W/DRAINAGE FOR WATER, PROVIDE SUBMITTALS POURED CONC. BASE BENCH BACK REST NOT REQ'D IF ATTACHED TO WALL BENCH ADA FLOOR CLEAR SPACE 42" MIN 20" MIN 24" MAX A A SECTION A-A
