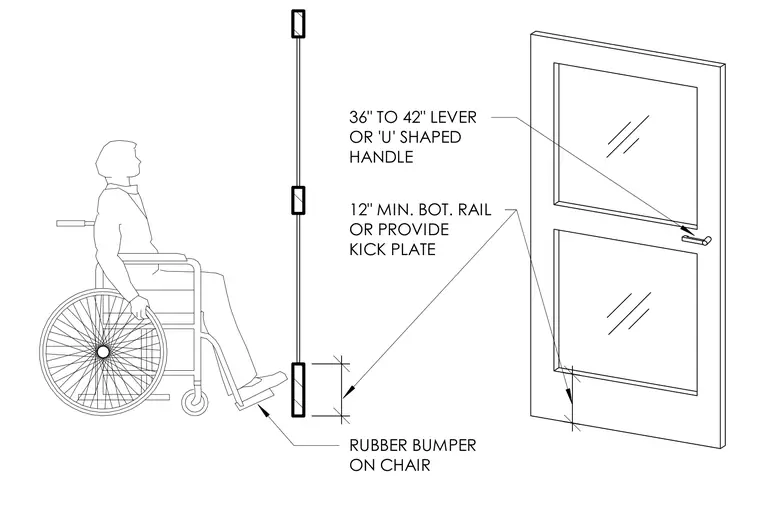

Doors feature a lever or U-shaped handle positioned thirty-six to forty-two inches above the finished floor. The bottom rail requires a minimum height of twelve inches or the installation of a kick plate to protect against wheelchair impacts. A rubber bumper is located on the wheelchair footrest to prevent damage to the door surface.
36" TO 42" LEVER OR 'U' SHAPED HANDLE 12" MIN. BOT. RAIL OR PROVIDE KICK PLATE RUBBER BUMPER ON CHAIR
