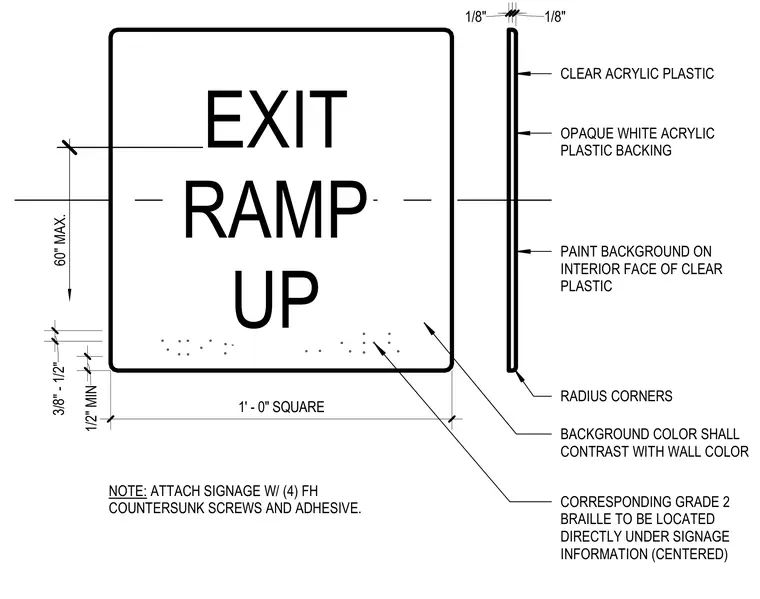

This tactile exit sign assembly consists of a one-foot square clear acrylic plastic faceplate with radius corners and an opaque white acrylic plastic backing. The background color is painted on the interior face of the clear plastic and must contrast with the adjacent wall color. Corresponding Grade 2 braille is located directly centered under the raised signage text. The sign mounts to the wall using four flat-head countersunk screws combined with adhesive. The bottom of the sign is positioned between three-eighths and one-half inch minimum above the reference finish surface, with the center line maintained at sixty inches maximum above the floor.
EXIT RAMP UP 1/8" 1/8" 1' - 0" SQUARE CLEAR ACRYLIC PLASTIC OPAQUE WHITE ACRYLIC PLASTIC BACKING PAINT BACKGROUND ON INTERIOR FACE OF CLEAR PLASTIC RADIUS CORNERS BACKGROUND COLOR SHALL CONTRAST WITH WALL COLOR CORRESPONDING GRADE 2 BRAILLE TO BE LOCATED DIRECTLY UNDER SIGNAGE INFORMATION (CENTERED) 1/2" MIN 3/8" - 1/2" NOTE: ATTACH SIGNAGE W/ (4) FH COUNTERSUNK SCREWS AND ADHESIVE. 60" MAX.
